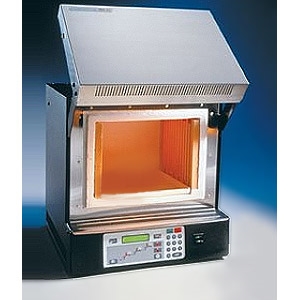

NEW The Vulcan Model 3-1750 (120V 50/60Hz) is a digital, multi-stage programmable furnace. Each stage of the three-stage digital programmable controller features adjustable temperature, temperature ramp rate and hold or soak time. Any 2 programs can be linked together for total of 6 stages. The Vulcan 3-1750 like all Vulcan benchtop furnaces have a maximum temperature of 1000 Celsius or 2012 Fahrenheit. The Vulcan 3-1750 features High Performance Hybrid Muffle Technology exclusive to Vulcan benchtop furnaces for faster heating and cooling than full firebrick furnaces. It is constructed with a heavy gauge steel cabinet finished with a durable baked enamel coating. Vulcan benchtop furnaces are available in three standard muffle sizes and each can be purchased with one of three different controllers. They are also available in various combinations of US and European power supplies. It comes with a 2 year limited warranty.
|
Volume (Cu. In.): |
1750 |
|
Chamber (W x H x D) mm: |
360 x 250 x 320 |
|
Exterior (W x H x D) mm: |
610 x 545 x 500 |
|
Power: |
3100W (Max. <4800W) |
|
|
| Model | 3-1750
| 3-550
| 3-130 | | Control Type | 9-stage program, digital | 9-stage program, digital | 9-stage program, digital | Venturi-drive
Preheated
Air Exchange | No | No | No | Chamber Dimensions
width
depth
height |
360mm (14")
320mm (12.5")
250mm (10")
|
230mm (9")
230mm (9")
180mm (7")
|
140mm (5.7")
130mm (5.2")
120mm (4.6")
| | Chamber Size | 1750 cu. in. | 550 cu. in. | 130 cu. in. | Cabinet Dimensions
width
depth (open)
height (door open)
height (door closed) |
610mm (24")
535mm (21")
815mm (22")
545mm (21.5")
|
400mm (15.8")
430mm (17")
630mm (25")
410mm (15.8")
|
290mm (11.5")
330mm (13")
510mm (20")
350mm (13.8")
| Maximum Operating
Temperature | 1100°C
2012 °F | 1100°C
2012 °F | 1100°C
2012 °F | | Maximum Ramp Rate | 40°C/min
72°F/min | 40°C/min
72°F/min | 40°C/min | Power Consumption
(watts) | 3100w
<4800 | 1300w
<1500 | 750w@120V
650w@240V | Watts to Maintain
1000° C | 2200 | 1050 | 525 | | Net Weight | 46kg (100lbs) | 21kg (45lbs) | 11kg (25lbs) |
|
|
|
Weight:
167.00 Pounds |
|
Dimensions:
26.00(L) x
26.00(W) x
26.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
| SKU | Item | Price | |
|
9493309 |
9493309 : Neytech, Vulcan Multi-stage Programmable Furnace, Model 3-550, 550 cu. in., Digital, 9-Stage Program, 200-240V, 50/60Hz, 1 EA |
$2,190.00 |
|
|
9493658 |
9493658 : (European P/S) Vulcan Multi-stage Programmable Furnace, Model 3-1750, 1750 cu. in., Digital, 9-Stage Program, 230V, 50/60Hz, 1 EA |
$4,095.00 |
|
|
9493985 |
9493985 : Neytech, Vulcan Multi-stage Programmable Furnace, Air Exchange, Model 3-550A, 550 cu. in., Digital, 9-Stage Program, 230V, 50/60Hz, 1 EA |
$2,534.00 |
|
|
9493990 |
9493990 : Neytech, Vulcan Multi-stage Programmable Furnace, Air Exchange, Model 3-1750A, 1750 cu. in., Digital, 9-Stage, 200-240V, 50/60Hz, 1 EA |
$4,510.00 |
|
|
9493826 |
9493826 : Neytech, Vulcan Multi-stage Programmable Furnace, Power Door, Model 3-550PD, 550 cu. in., Digital, 9-Stage Program, 120V, 50/60Hz, 1 EA |
$2,390.00 |
|
|
9493827 |
9493827 : Neytech, Vulcan Multi-stage Programmable Furnace, Power Door, Model 3-550PD, 550 cu. in., Digital, 9-Stage Program, 200-240V, 50/60Hz, 1 EA |
$2,435.00 |
|
|
5355740004 |
Vulcan Model 5355740004 Digital, 3-Stage Programmable Furnace, 3-550 100-120V, 550 cubic inch |
$3,349.00 |
|
|
5355740003 |
Vulcan Model 5355740003 Digital, 3-Stage Programmable Furnace, 3-550 200-240V, 550 cubic inch |
$3,398.00 |
|
|
9493302 |
9493302 : Neytech, Vulcan Multi-stage Programmable Furnace, Model 3-130, 130 cu. in., Digital, 9-Stage Program, 120V, 50/60Hz, 1 EA |
$1,700.00 |
|
|
9493303 |
9493303 : Neytech, Vulcan Multi-stage Programmable Furnace, Model 3-130, 130 cu. in., Digital, 9-Stage Program, 200-240V, 50/60Hz, 1 EA |
$1,750.00 |
|
|
9493308 |
9493308 : Neytech, Vulcan Multi-stage Programmable Furnace, Model 3-550, 550 cu. in., Digital, 9-Stage Program, 120V, 50/60Hz, 1 EA |
$2,040.00 |
|
|
|
