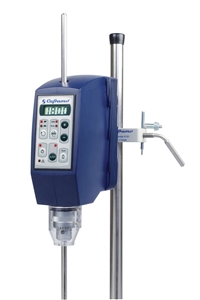

Caframo’s Ultra Torque BDC1850 oiverhead stirrer lives up to its name, delivering high torque mixing action within the footprint of a bench top overhead stirrer. The BDC1850 stirrer is a proven performer for cream and gel formulations, paint grinds, premixes, and small scale production batches. The TENV housing and quality construction of the BDC1850 overhead stirrer are a match in mixing application in industrial, food, and pharma manufacturing applications. You are guaranteed to get more power out of your Caframo BDC1850 because of its brushless DC motor and transmission combination.
The BDC1850 overhead stirrer especially finds its niche in mixing tar, gravel, epoxies and other extremely viscous fluids. Constant speed! As the stirrer load increases an internal closed loop feed back circuit directs more current to the stirrer motor. At low speed the Caframo BDC1850 can exert 5 times the torque as the high speed range. The BDC1850 is also sparkless with a fully enclosed fully enclosed brushless DC motor with sealed ball bearings.
“These are strong running machines that get abused almost daily.”
Director of Operations, coatings toll manufacturer.
Like all Caframo stirrers the BDC1850 is quiet, dependable, maintenance free and ideal for continuous use. The Caframo BDC1850 stirrer can handle high volume, high viscosity stirring as easily as dispersing and homogenizing. Of course these actions all depend on the type of impeller in the overhead stirrer. Low speed dispersion of aggregates in liquid media is typically done with the dispersion impeller.
Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.
Features:
- Brushless DC motor
- Totally enclosed metal housing
- Electronic control
- Smart two-speed transmission
- Through shaft
- Chuck guard included
Benefits:
- High efficiency (less heat)
- Protection from dust and product splashing
- Precise speed adjustment and speed maintenance as viscosity changes
- Transmission selects high-torque or high-speed range
- Easy impeller adjustment saves time
- Safely encloses spinning chuck to protect user
- Protects chuck from splashes
Caframo's BDC stirrers handle high volume / high viscosity stirring
as easily as dispersing and homogenizing.
- Three models offering a wide range of speed/torque capabilities.
- Constant speed! As the stirrers load increases an internal closed
loop feed back circuit directs more current to the stirrers motor.
- Two speed ranges. Low speed offers 5 times the torque as the high
speed range.
- Sparkless, fully enclosed brushless DC motor with sealed ball bearings.
- Quiet, Dependable and Maintenance Free.
- Adjustable chuck accepting up to 10.1 mm shafts.
- Single hollow stainless spindle.
- 1/5 horsepower motor, 150 watts
- Weight: 5 kg, 11 lbs
- Display Accuracy:
- Speed: ± 1 rpm or ± 1% of reading
- Torque: ± 1 in-lb or ± 5% of reading
|
|
Speed/Torque Range 1: |
12-360 rpm / 50 in-lbs |
|
Speed/Torque Range 2: |
360-1800 rpm / 10 in-lbs |
|
|
A line of stirrers with accurate control for precision research
and power for high colume / high viscosity lab or pilot plant applications.
Caframo's reliable and powerful stirrers also incorporate safety. each stirrer
comes with a clear chemical resistant hinged chuck guard that conveniently
snaps onto the stirrer.
The heart of the BDC line is the microprocessor controlled, high performance
Brushless Direct Current (BDC) motor. A unique Two Speed Transmission transfers
the motor's power to the chuck with 95% efficiency, providing incredible
amounts of power.
|
| Electrical Input |
120V, 50/60 Hz, 5A |
| Output Power |
1/5 hp, 150 Watts |
| Measurements (L x W x H): |
20 x 9.5 x 23 cm
8 x 3.75 x 9 in. |
Ultra Torque stirrer for stirring tar, gravel, resins, adhesives or
solutions with a high viscosity: BDC1850 ranges from 12-1800 rpm
Speed/Torque Range 1:
| Speed |
Torque |
| 12-360 rpm |
50 in-lbs |
Speed/Torque Range 2:
| Speed |
Torque |
| 360-1800 rpm |
10 in-lbs |
|
| Available in 115 or 220
volts |
|
Universal / General purpose stirring: BDC3030 ranges from 20-3000
rpm
Speed/Torque Range 1:
| Speed |
Torque |
| 20-600 rpm |
30 in-lbs |
Speed/Torque Range 2:
| Speed |
Torque |
| 600-3000 rpm |
6 in-lbs |
|
| Available in 115 or 220 volts |
|
Ultra speed performer for stirring anything at higher speeds: BDC6015
ranges from 40-6000 rpm
Speed/Torque Range 1:
| Speed |
Torque |
| 40-1200 rpm |
15 in-lbs |
Speed/Torque Range 2:
| Speed |
Torque |
| 1200-6000 rpm |
3 in-lbs |
|
Available in 115 or 220 volts |
|
|
|
|
Weight:
18.00 Pounds |
|
Dimensions:
19.00(L) x
15.00(W) x
8.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
| SKU | Item | Price | |
|
S11719-01 |
S11719-01 : Caframo Universal / General Purpose Overhead Stirrer (115V), BDC 3030, 1 EA |
$1,850.00 |
|
|
S11719-05 |
S11719-05 : Caframo Ultra High Speed Overhead Stirrer (115V), BDC 6015, 1 EA |
$1,850.00 |
|
|
S11731-01 |
S11731-01 : Caframo Universal Safety Stand, 28" Stainless Steel rod, A110, 1 EA |
$290.00 |
|
|
S11731-02 |
S11731-02 : Caframo Stirrer Clamp, A120, 1 EA |
$105.00 |
|
|
S11731-00 |
S11731-00 : A210 Safety Stand for Overhead Stirrer Caframo BDC2010, 24" Stainless Steel rod, 1 EA |
$260.00 |
|
|
S11288-01 |
S11288-01 : Caframo Reversing Digital Overhead Stirrer (115V), BDC 2010 |
$1,285.00 |
|
|
S11718-01 |
S11718-01 : Caframo Compact Digital Stirrer, Model BDC 2002, 1 EA |
$1,030.00 |
|
|
|
